Heavy-duty stainless steel wall and ceiling mounted pulley system

The Engineered for durability and the seamless load handling, this is a heavy-duty fixed pulley assembly offers a practical mechanical solution for the directional rope guidance and lifting tasks. Built from corrosion-resistant stainless steel and fitted with a brass sheave, and the unit provides reliable performance across indoor and outdoor environments, and whether installed in workshops, and garages, and home gym systems, or architectural setups.

Dual Mounting Flexibility

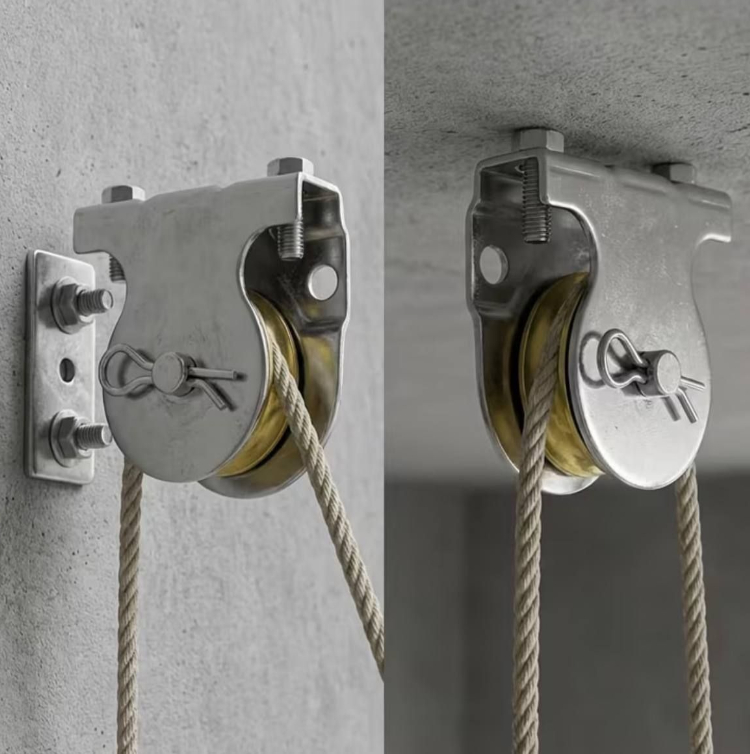

The image showcases the assembly’s dual mounting capability:

Wall-Mounted Configuration (Left): Attached via a reinforced steel backplate and secured with dual threaded anchor studs and lock nuts. This setup efficiently redirects ropes at custom angles along vertical surfaces.

Ceiling-Mounted Overhead Configuration (Right): Bolted directly into an overhead concrete ceiling, enabling vertical hoisting, suspended storage, or counterweight rigging systems.

Key Functional Features

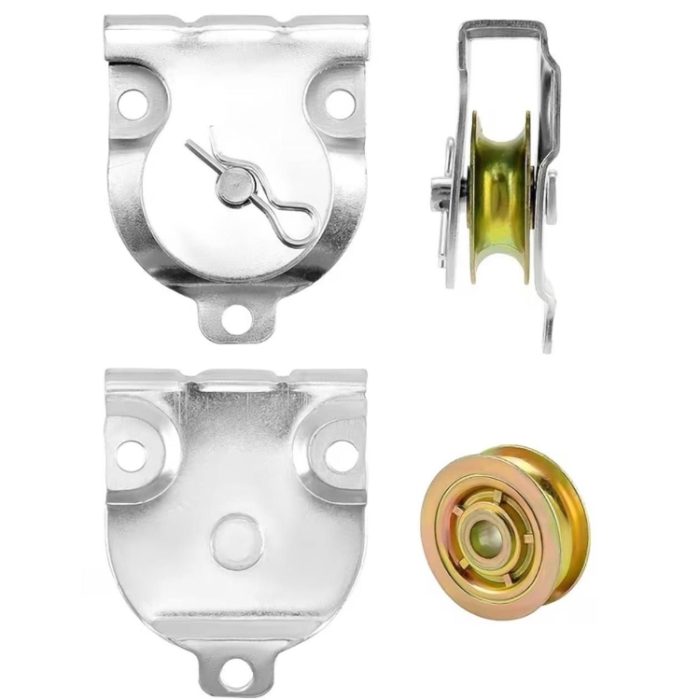

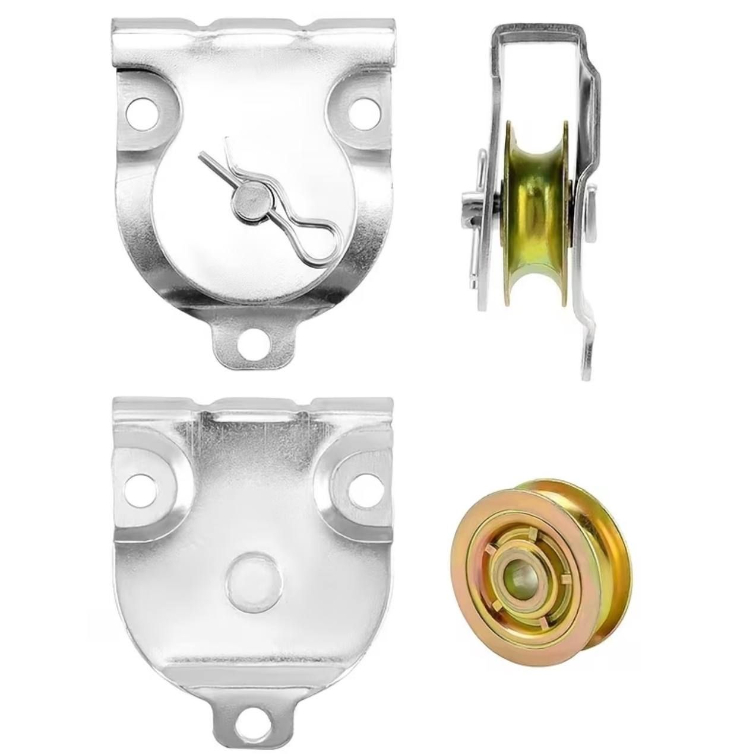

Durable Construction: A stamped stainless steel housing protects the internal wheel while resisting rust, and moisture, and abrasive wear.

Low-Friction Brass Wheel: The deep-groove brass sheave guides fiber ropes and cables securely, and minimizing line friction, and wear, and accidental derailment under tension.

Quick-Release Cotter Pin Axle: Fitted with a robust R-clip / cotter pin mechanism, and the axle pin allows for rapid assembly, and routine inspection, and simple rope replacement without dismantling the entire wall mount.

Secure Fastening Points: The Pre-drilled bracket holes accommodate heavy-duty anchor bolts, and ensuring strong load distribution against solid concrete or masonry structures.

Practical Applications

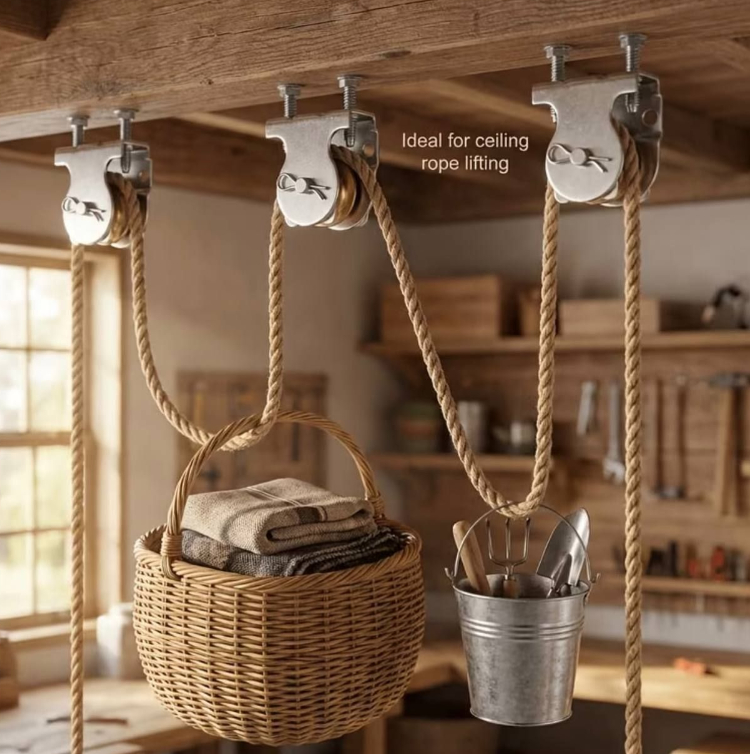

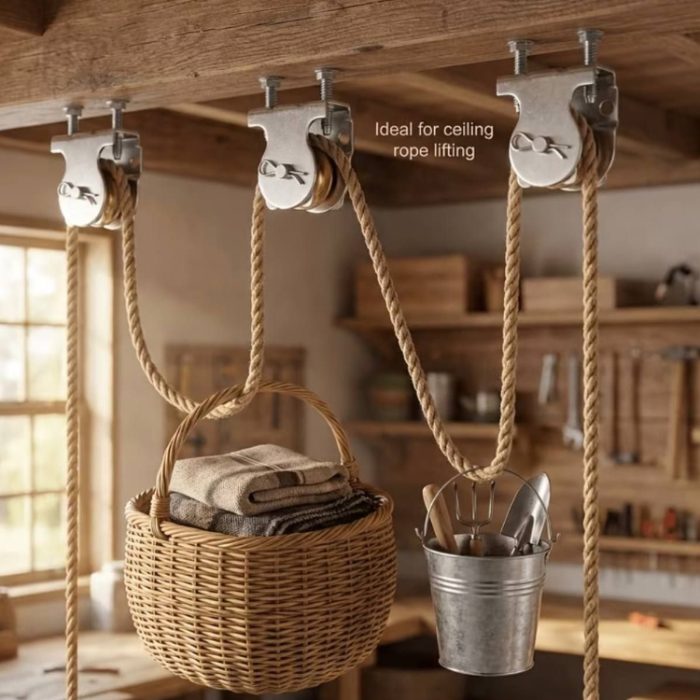

This is a pulley hardware is ideally suited for overhead garage storage hoists, and clothesline drying racks, and stage and theatrical rigging, light-duty cargo hauling, and custom cable-pulley fitness equipment. Its compact footprint, and combined with an industrial aesthetic, and delivers both functional strength and clean visual design.
