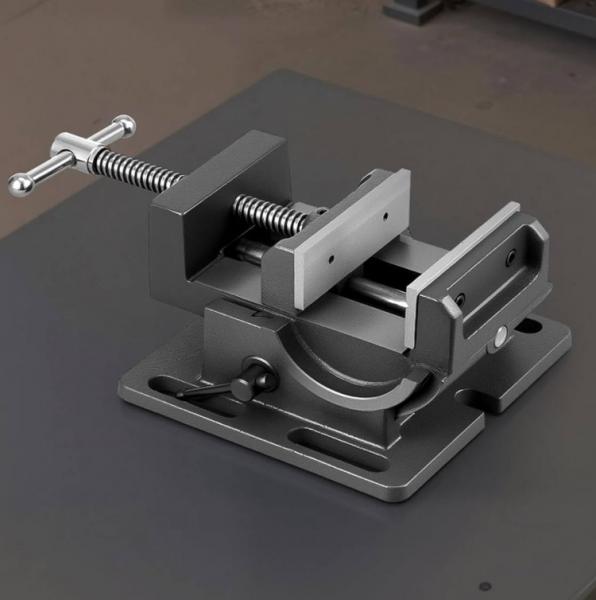

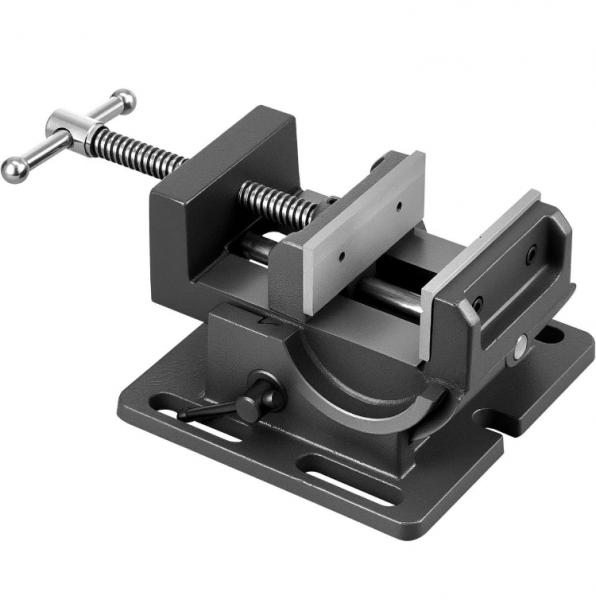

A 4.25-inch tilting vise will add a new level of versatility and functionality to your shop. Unlike standard flat vises, which provide little flexibility for cutting angled parts, the 4.25-inch tilting vise allows you to perform both stable, straight cuts as well as curved, beveled cuts.
Mounting this special tool to the either a workbench or a drill press table creates and a flexible working platform that greatly enhances your capabilities. Because it has a smaller jaw width than many other tilting vises (4.25 inches) and you do not need a large amount of space to use it. It fits easily onto most drill press tables, leaving plenty of room to move around your work area. At the same time, the 4.25-inch jaw is large enough to securely clamp a wide variety of objects including: small metal brackets, large wooden blocks and everything in between.

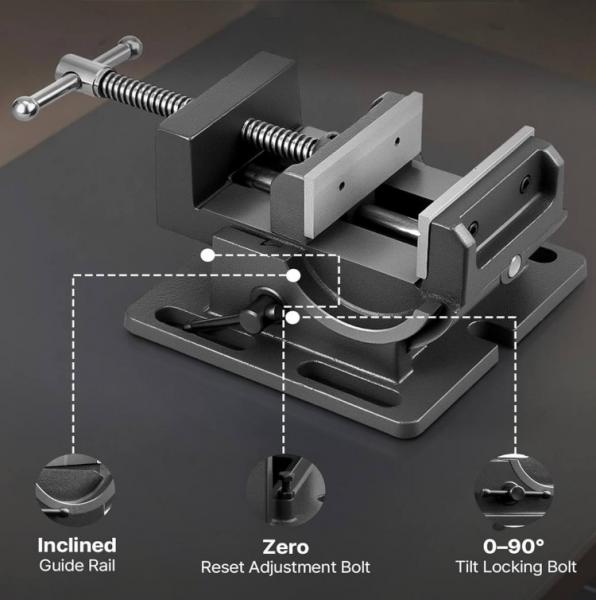

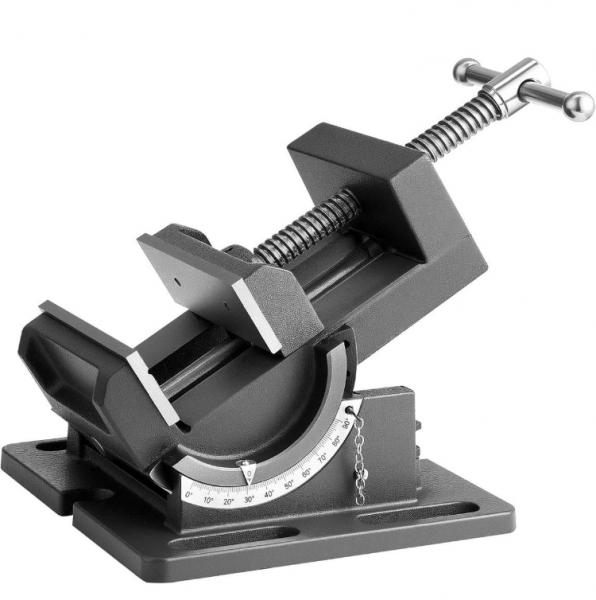

One of the major advantages of a 4.25-inch tilting vise is its adjustable position. It pivots smoothly through a full 90 degrees (and sometimes beyond) to allow you to make beveled cuts and angled holes, or compound cuts without moving the part itself. Precision is the especially important when they using a drill press because most drilling operations require a right angle hole. However and if you have a 4.25-inch tilting vise attached to your drill press table and you now have the capability to drill angled pocket holes, create custom countersinks or even drill precise channels for dowels and hardware at specific locations. The built-in tilt gauge also provides great accuracy and repeatability when measuring out angles such as 30 or 45 or 60 degrees. By providing these features and the risk of operator error and wasted material is minimized.
In addition to being used in conjunction with a drill press, there are many applications for a 4.25-inch tilting vise directly on a bench top. For example and a 4.25-inch tilting vise installed on a sturdy workbench can act as a stiff third hand for detail oriented tasks like precision filing and custom fabrication or detailed assembly work. Knife makers and metal enthusiasts can adjust the tilt to achieve a comfortable ergonomic position for filing bevels or polishing surfaces. Regardless of how you intend to utilize this device, the lead screw provides ample clamping pressure to ensure that your work piece remains stationary during all phases of operation - whether you are grinding, sanding or sawing. Soft magnetic pads can also be applied to the face of each jaw and prevent marring or denting of the sensitive materials like aluminum or finished hardwoods while still providing sufficient clamping pressure.
To maximize the potential of this tool and the first step is to properly install and align it. If mounting the vise to a drill press table and then the machined slots on the bottom of the vise base should be utilized to maintain structural integrity and prevent excessive rotation due to excessive torque. Also, ensure that the vise jaws are perfectly aligned with the drill press spindle so that your angled holes remain consistent in orientation throughout the length of the cut. With a 4.25-inch tilting vise as one of your tools and you will be able to expand your capabilities and improve the quality of your bench-top projects regardless if they include complex joinery and custom mechanical components or even gunsmithing.
