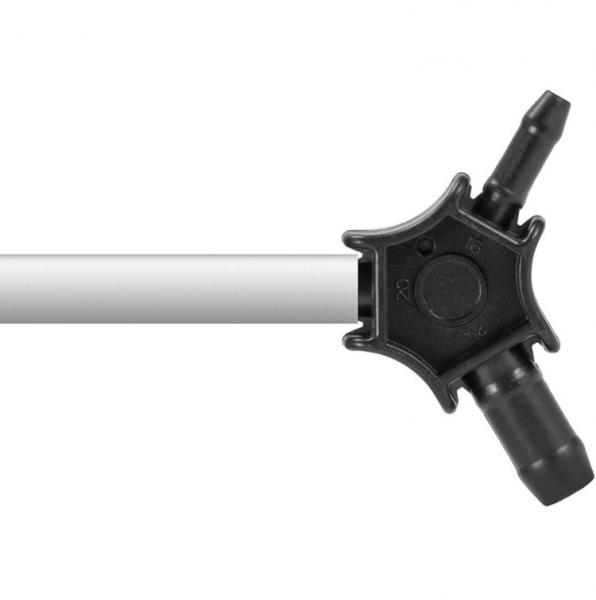

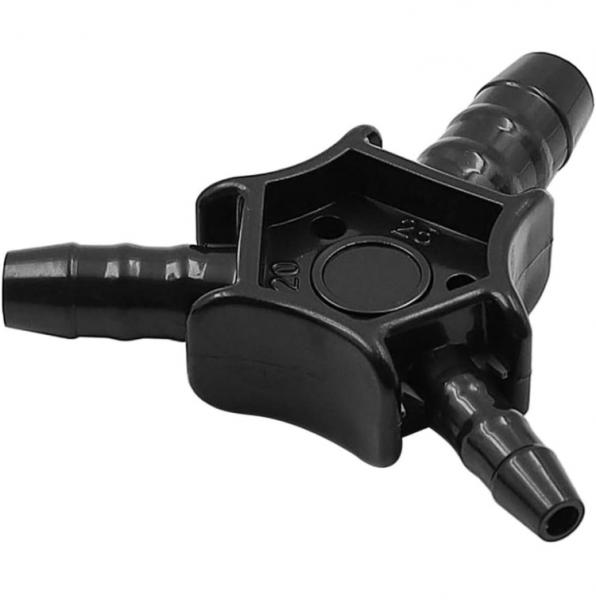

The part shown is a specialized type of 3 way plastic barbed connector that has been used to separate or join the paths of fluids and/or gases in a variety of industrial applications including the automotive industry and irrigation and other areas of application.
In particular, the present design provides three barbed inlet ports disposed about an interior strengthened housing unit which optimize the fluid path flow characteristics of the connector while providing a secure gripping force on any tubing being attached to it.
Design and Functionality
this connector was designed for high performance and reliability. Its major feature components were:
Barbed fittings : Each of the three inlet ports have a unique tapered projection or they ridge ("barb") that can accept a flexible hose or rubber tubing and will hold it securely once it has been pushed onto the port but is resistant to being pulled away from the port by some means such as a clamp.

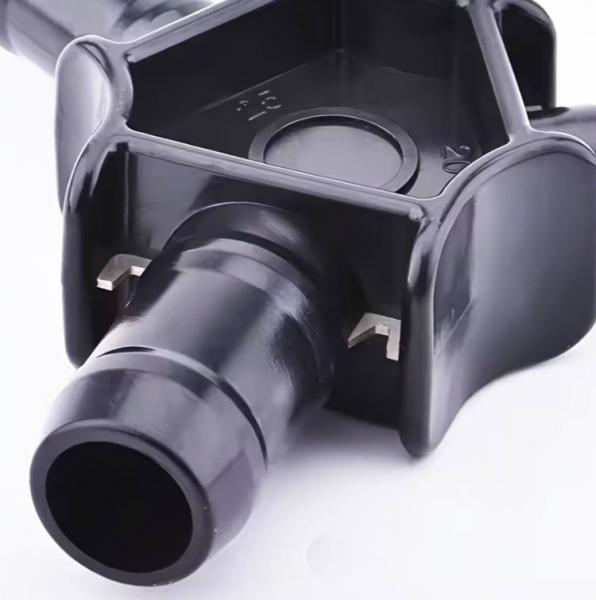

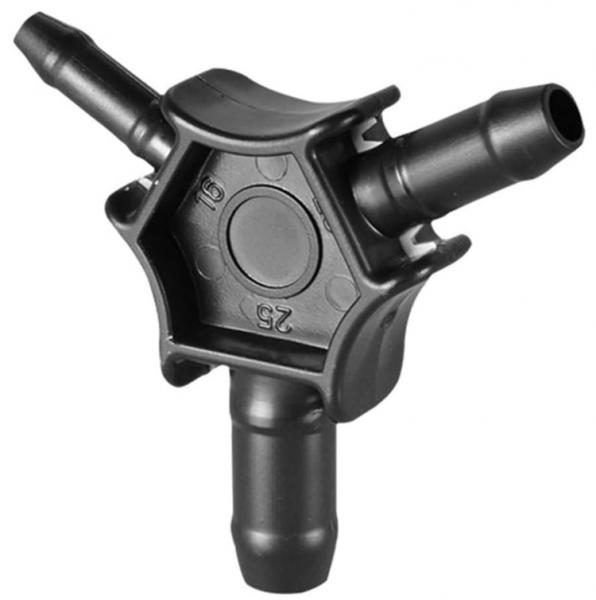

Reinforced hexagonal hub : The center section of the connector is formed into a stiffened, contoured shape having markings indicating its technical specification (e.g., "16", "25") etc. The presence of this internal structure gives the connector increased stiffness and resistance to distortion or fracture when subjected to pressures.
Variable diameter ports : A notable aspect of this particular connector is that each of the ports appears to have varying diameters, thus this connector would be particularly useful when connecting hoses of different diameters or they controlling the rate at which liquids move through different sections of a piping system.
Applications
Because they are made from durable, lightweight materials, these connectors are often found in many types of applications across many industries:
Automotive : These connectors are commonly used in various automotive applications such as vacuum lines, windshield washer systems and secondary cooling/ventilation bypass lines.
Irrigation/Gardening : They may also be used in the gardening and lawn care markets where low pressure drip irrigation systems are used to distribute water throughout lawns, gardens etc. In these cases, they allow gardeners to take one water source and pide it among two or more smaller irrigation feeds.
Aquarium/Hydroponic : They are also very common in aquarium and hydroponic systems where they are used to distribute compressed air through the use of compressed air pumps to provide oxygen to roots in hydroponic systems or to fish in aquariums.
