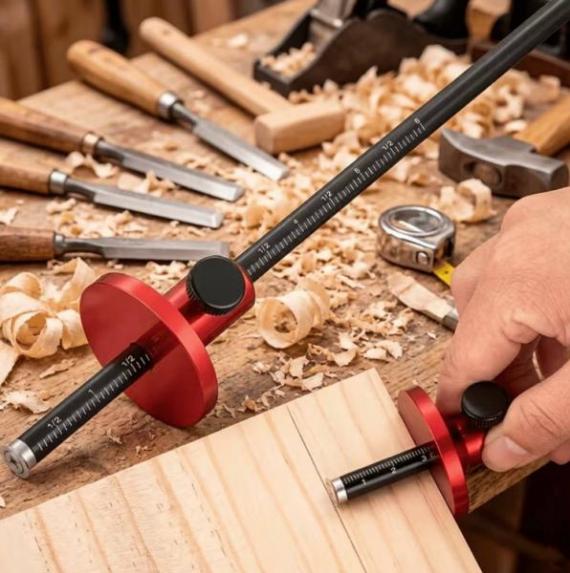

The adjustable wheel marking gauge is one of the most important woodworking tools available to the serious woodworker, whose goal is to achieve accurate (in fact, precise) measurements and thus perfect joinery. This is because the majority of mortise & tenon cuts are done using a combination of layouts and actual cutting, and the traditional pin-based style of gauges will often follow the grain of the wood and become "lost" before you reach your desired location.

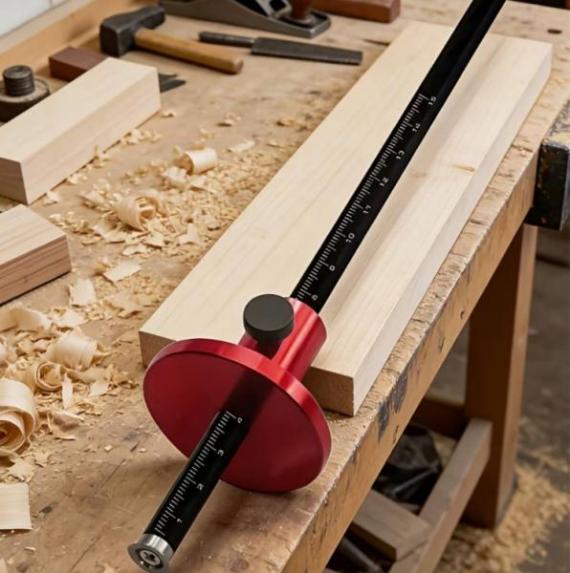

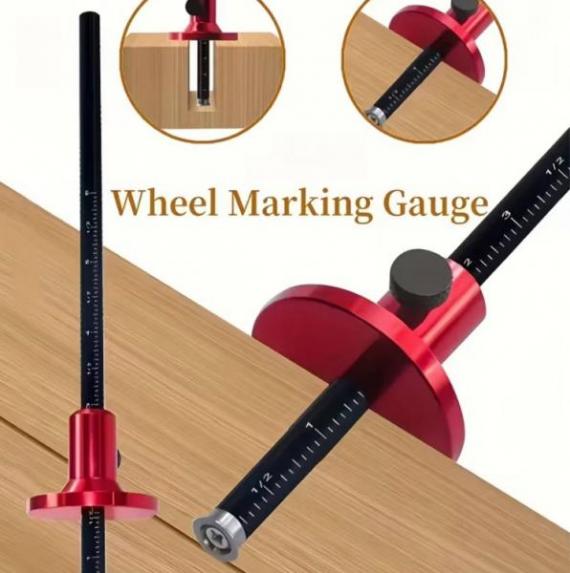

In contrast, the wheel marking gauge has a hardened steel circular cutter that "slices" through the wood fibers, creating a crisp, clean line that is always perfectly perpendicular to the reference surface of the piece being worked. A chisel or saw may now be used to complete the cut to precisely match the previously marked line. Most marking gauges are made of either solid brass or stainless steel bodies combined with a precision ground rod. As a result of this design, they have significant weight and excellent balance that allows for comfort in the hand, and provides a stable platform for making marks.

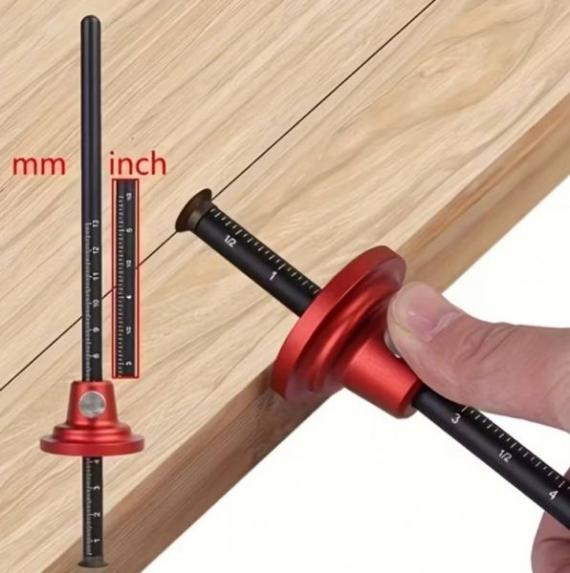

One of the greatest benefits of using a marking gauge is that it is an adjustable tool, which includes laser-etched metric and imperial scales on the shaft. With this feature, users can make rapid changes to measurement locations without needing a separate measuring device. Thus, the potential for error during the layout stage of a project is greatly diminished. Once adjusted to the proper measurement location, the user simply needs to loosen the knurling locking mechanism and slide the fence to the exact position needed for a tenon shoulder or groove. At that point, the user locks the fence back into place. Having rigidly locked the fence into place at each measurement location is critical when working on projects requiring many parts, such as all four legs of a table. If there was some slight deviation in measurement, it would likely produce a sloppy fit between parts, or worse still, an unbalanced frame. The benefit of having laser etched measurements is that regardless of how long it has been since you last cleaned your workshop, your measurements will remain readable.
A very useful design feature of high-end wheel marking gauges is the recessed cutter head. In this design, when the gauge is stored, the sharp blade is protected both from damage and from coming into contact with the user’s fingers due to it sitting flush against or slightly within the fence. However, when actually in use, the single sided bevel of the wheel automatically tightens down the fence onto the wood, thereby correcting any errors that might occur during the operation, resulting in a layout line that is as close to the reference edge as possible. This is particularly advantageous when preparing stock for grooves and rabbets. To produce a smooth panel fit or to properly locate drawer bottoms, all grooves and rabbets need to be produced consistently along their entire length.

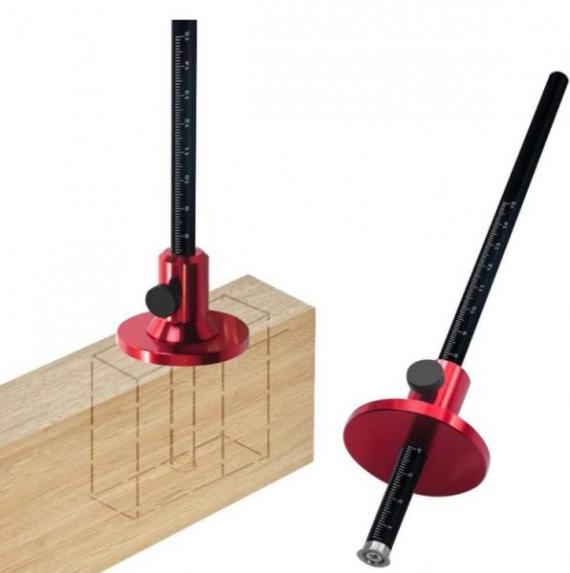

Beyond mere marking, however, these tools excel in the layout of mortises where a double-rod configuration or a sequential marking technique is necessary. Simply set the gauge to the correct thickness of your chisel(s), and you can accurately draw the walls of your mortise. In doing so, you will create a void that corresponds perfectly with your tenon. Those capable of producing micro-adjustments found on higher end models can refine fits to be neither too tight (causing splitting) nor too loose (compromising strength). Such control turns what otherwise appears to be an arduous and time-consuming manual process into a methodical and repetitive process.
In conclusion, an adjustable wheel marking gauge is far more than merely a ruler with a blade - it represents a connection between the raw material (lumber) and your finished product. It promotes a "Measure once, Mark once" process that increases productivity while promoting quality results. Its ability to produce a true path in your wood gives you a tangible starting point for your tools (far superior to drawing lines with pencils that can be covered by sawdust or graphite thickness). For those seeking to transition from building by "eye balling" and into the world of fine cabinetry and furniture making, acquiring a rugged and well-made marking gauge with laser etching is a fundamental first step towards becoming proficient in your craft.
