Achieving a precise joint at an angle can be a difficult task. A quality jig will allow you to create clean, concealed pockets that are strong and provide ease of use. The 45-Degree Oblique Pocket Hole Jig is designed to a make creating these types of the angled joints simple.
Build Quality & Key Features:
Durable Construction: Machined from high-quality anodized aluminum alloy; the body of the jig will resist wear, rust and damage from daily job-site abuse as well as being light enough to carry.
Dual Drilling Bore Sizes: Includes two replaceable 8mm and 10mm knurled steel drill guides. Each hardened steel sleeve is designed to prevent drill bit wander and keep the edge of the holes free from tear out.
Small Compact Design: Designed to fit in the palm of your hand it is easy to locate where you want to place the jig, clamp and move it around your workpiece.
High Contrast Laser Etching: White laser etchings and cross alignment lines help you to center and line up your drill path on the edges of a board, a flat surface or at mitered corners.
Applications:
Fasten Pocket Joints: Use this tool to create secure, hidden 45 degree joints in cabinetry, picture frame building, table tops and furniture repair.
Secure Edge and Corner Joints: Make any corner (or edge) joint stronger by securing it structurally.
For DIY Woodworkers And Workshops: Great for all levels of the wood working skills. For hobbyists who do small projects, for those doing their own remodeling and for the professional carpenter who needs a portable solution to large heavy bench top jigs.
Using the Tool:

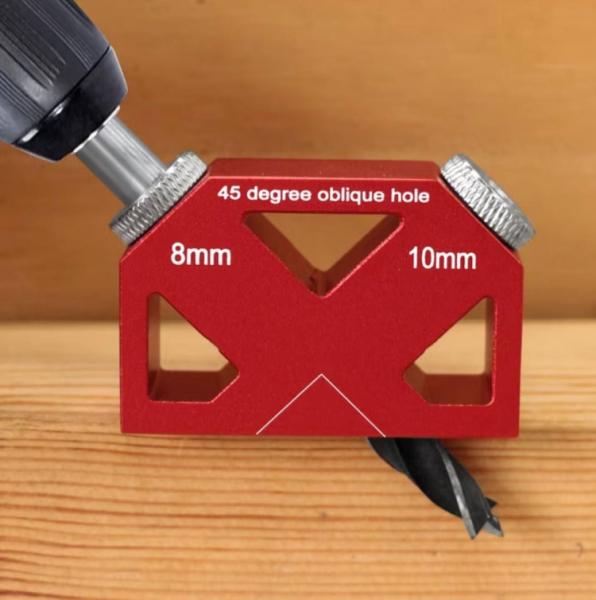

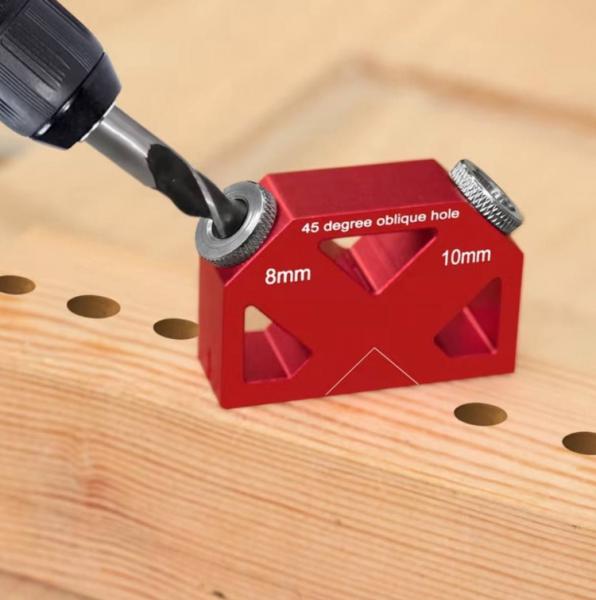

All you have to do is find the marks on the jig which correspond to your desired drilling spot, clamp the red guide block down on your work piece with a regular woodworking clamp. Next choose either the 8mm or 10mm drill bushing based upon what size hole you need. Lastly just insert your drill into the end of the jig and drill straight through the angled sleeve of the jig.
