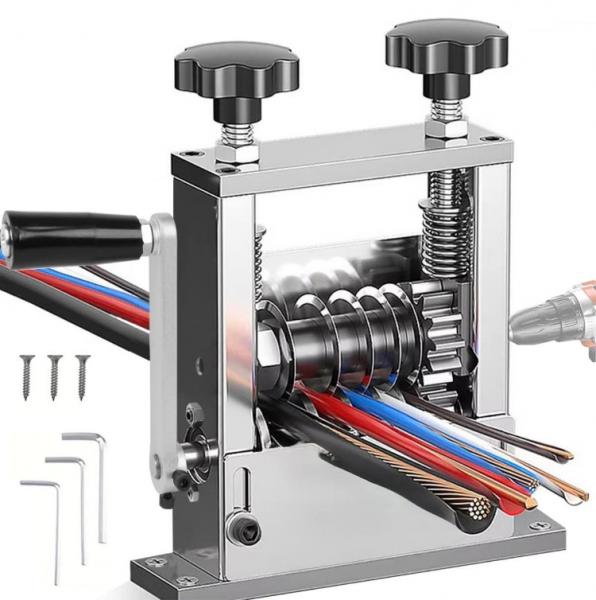

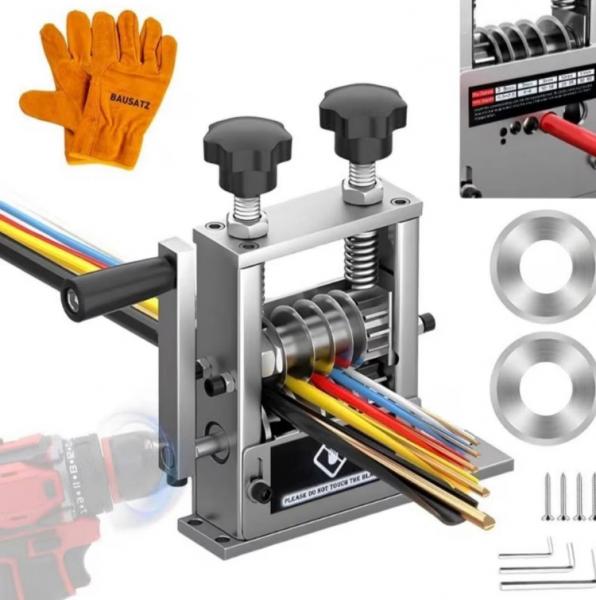

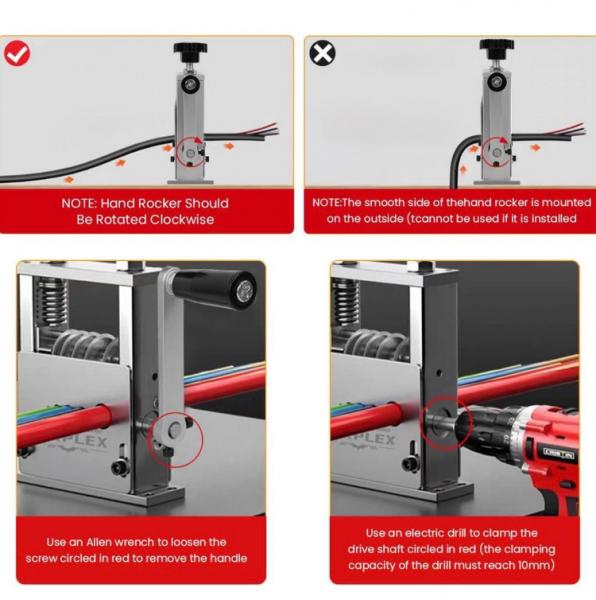

To begin, a 6-in-1 manual wire stripping machine is an indispensable tool for all inpiduals involved in the removal of the outer protective covering (insulation) from copper and/or aluminum wiring. This versatility allows the end-user to remove the insulation from various sizes of copper and aluminum wire; depending upon the type of wire, typical applications include residential, commercial and industrial environments. In addition, due to the wide variety of gauge sizes handled, this tool may also be utilized by scrap metal recycling operations. Although many other tools exist that have similar functions, the ability of the 6-in-1 manual wire stripping machine to function in two modes provides the greatest flexibility and efficiency for the end-user. Specifically, the user has the option to utilize a hand-crank mode to manually strip inpidual lengths of wire or attach a power drill to the drill motor shaft and use it to automatically strip longer lengths of insulated wire. This second method is specifically intended for rapid automatic stripping of numerous inpidual lengths of wire. Utilizing a power drill greatly enhances the stripping rate for higher volumes of material. Using a power drill eliminates much of the physical effort associated with manually cranking each length of wire through the cutting assembly. Therefore, utilizing a power drill is highly recommended for processing larger quantities of recycled wire. The primary feature of the 6-in-1 manual wire stripping machine that enables it to efficiently perform the task of stripping insulated wire is a precision cutting blade. As illustrated below, the precision cutting blade is capable of accurately cutting through the insulation surrounding the internal conductive wire without causing damage to the internal conductor. Since damaged wire does not retain its full monetary value, maintaining the integrity of the wire is crucial.
As with virtually all construction equipment used today and a high-quality mechanical design is necessary to provide long lasting service. Due to their rugged nature and they are typically constructed from either aluminum alloys or steel. These metals are chosen based on their strength-to-weight ratios, which provide excellent stability while operating. The stability provided by this combination of strength and weight is extremely important since the forces applied to pull a length of wire through the cutting assembly are considerable. To further enhance operational stability, most manufacturers incorporate pre-drilled mounting holes in the base of their products so that a user can permanently fasten their product to a bench. Attaching one's product to a stationary object not only contributes to improved operational safety; it also improves consistency in terms of how far into each wire the cutting blade penetrates. The internal components of a manual wire stripping machine consist primarily of an adjustable feed plate and a hardened steel blade. Adjusting the feed plate allows users to precisely position the cutting edge of the blade relative to the size of the wire being processed. Users are able to achieve the precise positioning of the cutting edge of the blade by simply rotating a small dial located on top of the machine. This dial controls a screw that raises or lowers the cutting blade relative to the adjustable feed plate. The positioning of the cutting edge of the blade must correspond to the thickness of the insulation surrounding the internal conductor for optimal results. Therefore, this dial represents a major factor that distinguishes this tool as a "six-in-one." It provides users with sufficient variability to accommodate multiple types of insulations, including P.V.C., rubber, and multi-wire cables.

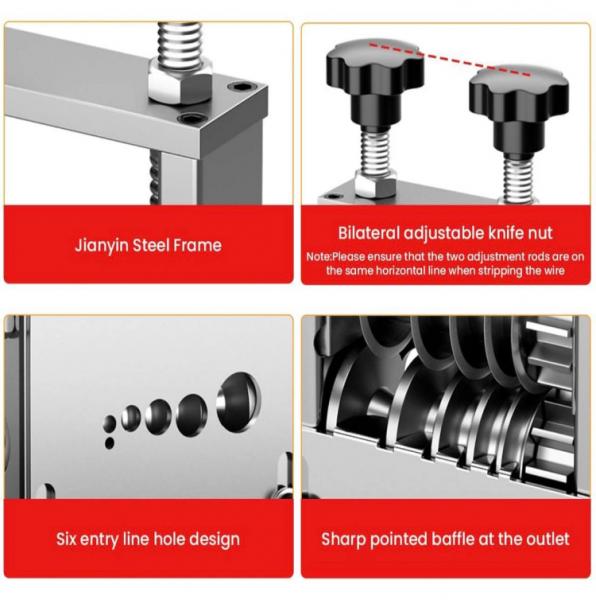

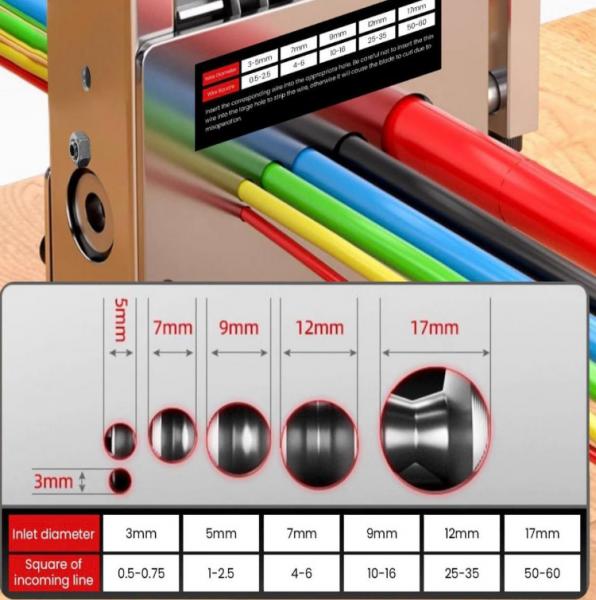

Utilization of a six-in-one manual wire stripping machine involves several steps, starting with identifying which one of four guide holes to insert the wire into. Smaller gauge wires fit snugly into one of these four holes and are then guided into center alignment under the cutting edge. The remaining three holes accommodate thicker gauges. While inserting a new piece of wire into a selected hole, it is simultaneously fed through a slot in the side of the machine and down into the path leading up to and beneath the cutting blade. Once positioned properly and a single turn of a large knurled handle turns a worm gear that rotates a cam that pivots a lever that moves upward and downward along with every rotation of the handle. As you continue to apply pressure to the handle and it becomes increasingly difficult to turn. At this point and if you were using a drill powered by electricity instead of your hands, you would want to slow down slightly before continuing. If you do not slow down prior to completing your turn and proceed to tighten down even harder and there is a good chance that you will overheat your cutting blade and potentially break thinner gauges. It is essential that you operate your drill at approximately constant speeds regardless of whether you are working with thick or thin gauges.
Although maintenance requirements for a six-in-one manual wire stripping machine are generally minimal, some routine maintenance is needed to ensure that the machine continues to provide years of service. One such area requiring regular maintenance is replacement or sharpening of the cutting blade(s). Depending upon usage levels, one could expect to replace or sharpen hundreds of feet worth of cutting blades per year. Virtually all professional grade manual strippers contain replaceable or sharpenable blades and therefore can be maintained at low cost. Routine cleaning of lubrication points and periodic removal and disposal of any debris (such as plastic shavings) that accumulates around any moving parts or roller bearings will help extend the overall lifespan of the unit. Overall and this versatile six in one manual wire stripping machine offers professionals and the hobbyists alike a convenient means to process electrical waste by converting large quantities of discarded wires into usable raw materials in an efficient manner.
